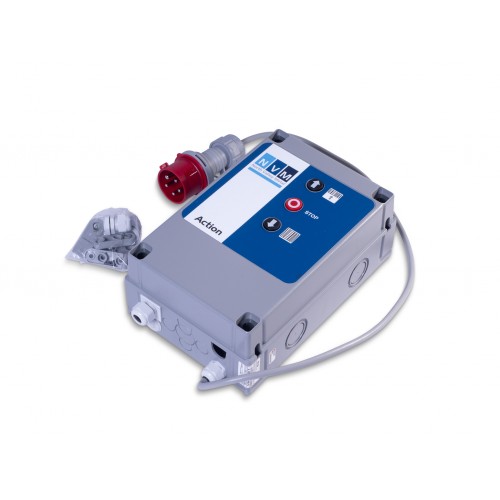

NDC501 - NVM Control Panel 415v 3 Phase for Direct Drives



The NDC501 Control Panel is our latest generation designed to operate with the ND5000 Series of Direct Drive Motors.with Electronic Limits.

The Panel operates on 3 phase 380/415v and has a range of built-in functionalities including Deadman Up / Down - On / Off, Safety Edge, Photocell & Light Barrier, Manual Switch & Remote Control.

The NDC501 Panel is supplied with Power Cable and 3phase Plug.

Our NDC501 can function with any 3ph Operators including Direct Drive Operators, Sectional Door Operators and Flange Mount Operators, all with either Electroncic or Mechanical Limits.



Functionality as standard;

  • 3ph – 2.2kw
  • Compatible with both Opto and 8.2K resistive safety edges.
  • Suitable for both MECH – ELEC Limits.
  • Volt Free – N/O Manual switching capability.
  • 3 button Up,Down,Stop on front cover.
  • Photocell compatible.
  • Independent n/c safety circuits
  • Easily programable limits from low level; (if ELEC)
  • Deadman – semi auto or auto running programmable through DiP Switch.
  • LED Safety Indicators and LED Error Indication.
  • Additional extras;
    • Induction loop module
    • Receiver and Transmitters
    • Bluetooth Module for Easy Programming



0.00 In Stock
Availability:
In Stock
Product Code:
NDC501
Brand:
NVM Motors

Not yet rated Write a review

Description

NDC501 - NVM Control Panel 415v 3 Phase for Direct Drives



The NDC501 Control Panel is our latest generation designed to operate with the ND5000 Series of Direct Drive Motors.with Electronic Limits.

The Panel operates on 3 phase 380/415v and has a range of built-in functionalities including Deadman Up / Down - On / Off, Safety Edge, Photocell & Light Barrier, Manual Switch & Remote Control.

The NDC501 Panel is supplied with Power Cable and 3phase Plug.

Our NDC501 can function with any 3ph Operators including Direct Drive Operators, Sectional Door Operators and Flange Mount Operators, all with either Electroncic or Mechanical Limits.



Functionality as standard;

  • 3ph – 2.2kw
  • Compatible with both Opto and 8.2K resistive safety edges.
  • Suitable for both MECH – ELEC Limits.
  • Volt Free – N/O Manual switching capability.
  • 3 button Up,Down,Stop on front cover.
  • Photocell compatible.
  • Independent n/c safety circuits
  • Easily programable limits from low level; (if ELEC)
  • Deadman – semi auto or auto running programmable through DiP Switch.
  • LED Safety Indicators and LED Error Indication.
  • Additional extras;
    • Induction loop module
    • Receiver and Transmitters
    • Bluetooth Module for Easy Programming
