Inner Blocks

NV012 - Inner Block - Cast - 4" Tube

NV012 - Inner Block - Cast - 4" Tube

NV012 - Inner Block - Cast - 4" Tube 101.6mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore, Bushed or Needle Bearing Full Rim Boss to each side Product codes: NV012A INNER BLOCK - 4" x 16swg, 5/8" BORE NV012AA INNER BLOCK - 4...

View More
NV013 - Inner Block – Cast – 5 ½” Tube

NV013 - Inner Block – Cast – 5 ½” Tube

NV013 - Inner Block – Cast – 5 ½” Tube 139.7m Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore or Bushed Full Rim Boss one side only. Product Codes: NV013A INNER BLOCK - 5.1/2" - 129mm x 1" BUSH NV013B INNER BLOCK - 5.1/2" ...

View More
NV014 - Inner Block - Cast - 5" Tube

NV014 - Inner Block - Cast - 5" Tube

NV014 - Inner Block - Cast - 5" Tube 127mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore, Clear Bore or Bushed Full Rim Boss one side only   Product Codes: NV014A INNER BLOCK - 5" - 1" CLEAR BORE NV014B INNER BLOCK - 5...

View More
NV022 - Inner Block – Cast – 5 ½” Tube

NV022 - Inner Block – Cast – 5 ½” Tube

NV022 - Inner Block – Cast – 5 ½” Tube 139.7mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore, Clear Bore or Bushed Full Rim Boss both sides   Product Codes: NV022A INNER BLOCK - 5.1/2" - 132mm DIA, 1" CLEAR BORE NV022B INNE...

View More
NV023 - Inner Block - Cast - 4" Tube

NV023 - Inner Block - Cast - 4" Tube

NV023 - Inner Block - Cast - 4" Tube 101.6mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore, Bushed Product codes: NV012A INNER BLOCK - 4" x 16swg, 3/4" BORE NV012C INNER BLOCK - 4" x 16swg, 20mm BORE Please Note: Some...

View More
NV041 - Inner Block - Cast - 4" Tube

NV041 - Inner Block - Cast - 4" Tube

NV041 - Inner Block - Cast - 4" Tube 101.6mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore, Clear Bore or Bushed   Product code: NV041A INNER BLOCK - 4" x 16swg - 1" BORE NV041B INNER BLOCK - 4" x 16swg - 1" BUSH   ...

View More
NV054 - Inner Block – Cast – 5 ½" Tube

NV054 - Inner Block – Cast – 5 ½" Tube

NV054 - Inner Block – Cast – 5 ½" Tube 139.7mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore, Clear Bore or Bushed Full Rim Boss both sides.   Product Codes: NV054A - INNER BLOCK - 5.1/2" - 126.5mm, 1" CLEAR NV054B - INNER ...

View More
NV061 - Inner Block - Cast 6" Tube

NV061 - Inner Block - Cast 6" Tube

NV061 - Inner Block - Cast 6" Tube 168.2mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore, Clear Bore or Bushed Full Rim Boss on one side   Product Codes: NV061A - INNER BLOCK - 6" - 157mm DIA, 1.1/4" BORE NV061B - INNER BLO...

View More

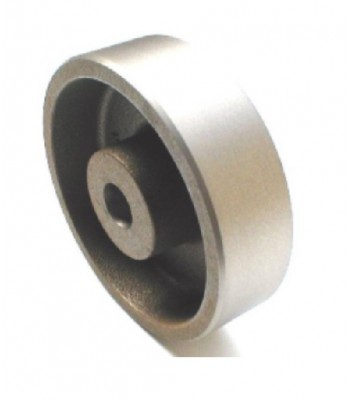

NV151 - Inner Block - Cast - 6" Tube

NV151 - Inner Block - Cast - 6" Tube

NV151 - Inner Block - Cast - 6" Tube 168.2mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Machined Spigot (See Product List) Drilled & Tapped 4 Holes (See Product List) Plain Bore, Bushed or Clear Bore Full Rim Boss to one side   Pro...

View More
NV155 - Inner Block - Cast - 5" Tube

NV155 - Inner Block - Cast - 5" Tube

NV155 - Inner Block - Cast - 5" Tube 127mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Plain Bore or Bushed Full Rim Boss to each side   Product Codes: NV155A - INNER BLOCK - 5" - 120mm x 1.1/16" BORE NV155B - INNER BLOCK - 5" ...

View More
NV172 - Inner Block - Cast - 4" Tube

NV172 - Inner Block - Cast - 4" Tube

NV172 - Inner Block - Cast - 4" Tube 101.6mm Ø Technical Details: Grey Cast Iron Machined O/D Machined Bore Machined Recess for Needle Bearing (See Product Codes) Plain Bore, Bushed or Needle Bearing Full Rim Boss to one side   Product List: NV172A - ...

View More
NV222 - Inner Block - Plastic - 4" Tube

NV222 - Inner Block - Plastic - 4" Tube

NV222 - Inner Block - Plastic - 4" Tube 101.6mm Ø Note: This block is not machined and is supplied as a plain injection moulded product with plain bore and is available as End Block & inner block versions. Technical Detail: Moulded Plastic No Machining on this product Plain Bore ...

View More
NV277 - Universal Barrel Block - Cast - 5 ½" Tube

NV277 - Universal Barrel Block - Cast - 5 ½" Tube

NV277 - Universal Barrel Block - Cast - 5 ½" Tube This is a Universal Casting that is pre-drilled & tapped, and machined with a spigot, to accept Platewheels or Drive Gears, whilst the the inner side has a ribbed Boss to accept a Spring. The Drive End is machined with a spigot whilst th...

View More

Leading Supplier of Inner Blocks

Inner Blocks are designed to be fitted inside the Barrel to offer additional support to the shaft or to act as the fixed element of a Dummy End Set. Inner Blocks would generally be used in Industrial Doors, Roller Shutter Doors and Garage Doors where support for the Shaft is required, although Push Up Barrels quite often use an Inner Block instead of an End Block.

North Valley Metal stock and supply a full range of Inner Blocks to suit Tube sizes from 4" Ø - 8" Ø and in a range of materials from Cast Iron to Plastic. Most Inner Blocks have one or two Inner Bosses to accept Torsion Springs and can be supplied in a range of bore sizes and types including Plain Bore, Clear Bore or fitted with an Oilite Bush. Inner blocks have a Solid Rim.
