Features:
- Built-on Starter
- Pre-Wired with 6 metres Cable and 3 Phase Plug
- Pre-Wired with 6 metres Cable and 3 button Station
- Low Voltage to 3 Button Station
- Automatic De-Clutch, no need to Toggle Cords
- Low Level Manual Override, no need for ladders

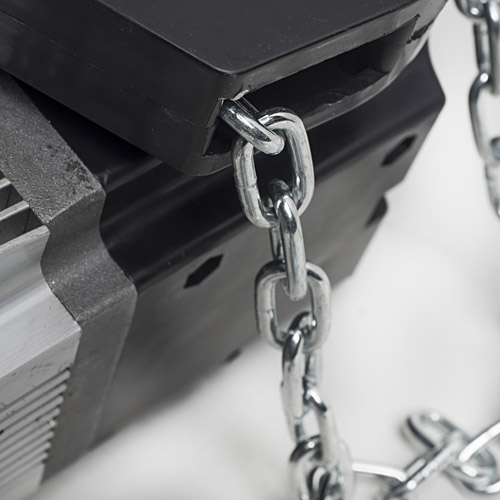

- 12 metre Loop Haul chain

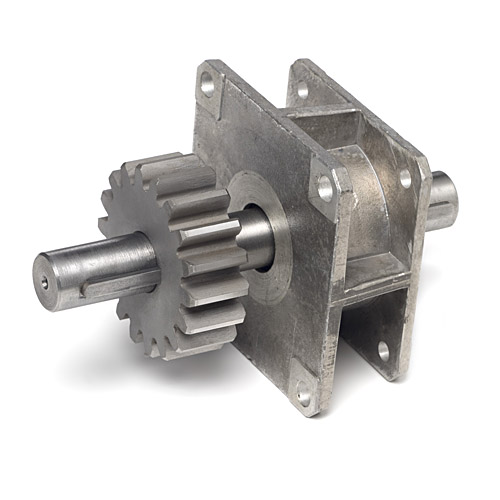

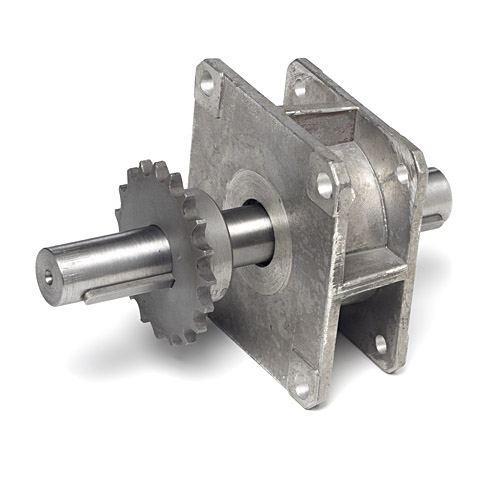

- Supplied with NDF100 Flange Adaptor c/w 1" Ø (25.4mm) Shaft and Keyway's, (Keys included).
- Universal Handing Left or Right, reduces stock holding
- Supplied complete including Torque Bracket, Toggles and Fixings
Technical Details:
- Input Power: 380/415v 50Hz 3ph
- Output Power:1000w
- Output Voltage to Panel: 24v Dc
- Current: 4.8a
- Max Travel: 6200mm
- Protection: IP54 Rated
- Output Torque: 150nm
- Output Speed: 24rpm
- Shaft Aperture: 25.4mm (1") Ø
- Working Temperature: -20 - +45 Deg C
- Thermal Protection: 140 Deg C
- Weight: 14kgs
