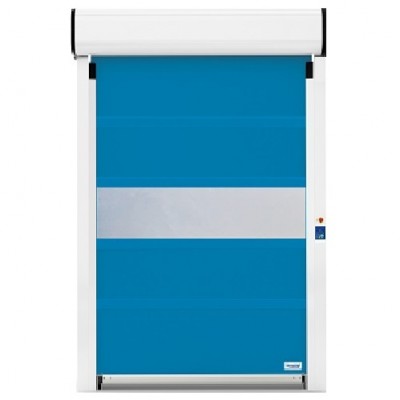

HSD006B - INCOLD GLIDE K-AL - K SERIES - RAPID ROLL DOOR

Incold Glide K-AL K Series High Speed Roll Up Door is latest in the Glide Range. Designed to operate Internally, the door can function in temperatures ranging from +40ºc to +1ºc at speeds of upto 2.5m/s. The Door is fitted with Glide Brushes offering a near slinet and low maintenenance solution for Supermarkets, DIY & Hardware Stores and any area where quiet operation is required. The foldable Breakout Shoes minimise potential Safety Edge damage and Call Outs. The K-AL version offers Aluminium Columns, Header and Canopy.

As with all K Series Rapid Roll Up Door the Glide K-AL is fitted with an integral Coaxial 0.25w Single Phase Drive, housed in the Winding Tube. which allow installation into corridoors and any other position where space is limited. The increased opening speed of 2.5 metres per second is ideal for supermarkets and retail distrubution sites where quiet, speedy access to warehousing / stock rooms is a priority. With opening and closing nose levels of >68.9dB it is one of the quietest Rapid Roll Up on the market,and ideal for areas in proximity to the general public.

Maximum recommended Door size 3500mm W x 3500mm H

Certification:

  • Manufactured to EN 13241-1 & CE Certified
  • Sequential Light Barrier complies to EN 12445 Safety Regulations
  • Reduced Operating Noise. >68.9dB

Features:

  • Up to 2.5m/sec opening.
  • Up to 300 Cycles per Day*
  • Integral 0.25kw Single Phase Coaxial Motor 220/240v with Electromagnetic Brake and Absolute Encoder housed in the Winding Tube.
  • Manual Override & Emergency Release Functions
  • K Series 2nd generation Self-Repairing Zipper system with Self-Lubricating Polythene Full Height Guides.
  • Aluminium Alloy Bottom Safety Rail & Floor Seal c/w Foldable Breakout Shoes
  • Sequential Light Barrier & Encoder as standard
  • Built In Emergency Stop Button
  • Intergral IP66 Control Panel with Mylar Keyboard and Digital Display.
  • Aluminium 12/10 Columns pre-painted PPC in RAL 9010 w.
  • Aluminium 12/10 Canopy pre-painted  PPC White RAL 9010 complete with Inspection Chamber
  • Minmimum opening width 1000mm

Curtain Detail:

  • Full Self-Repairing Curtain
  • 930gm/m² Curtain (Available in 1300gm/m² Insulated)
  • Vision .Panels (Full curtain)
  • 16 RAL Colours as Standard (3 RAL Colours Insulated)
  • Self Repairing Breakout Shoes to Aluminium Safety Edge

Options:

  • Induction Loops
  • Pull Cord
  • Remote Control
  • Radar Heads
  • Push Button
  • Traffic Lights & Sounders
  • Inverter for Soft Stop / Soft Start 3phase 380/415v
  • UPS Control Panel for Power Fail
  • Counterweight System for manual operation if Power Fail





0.00 In Stock
Availability:
In Stock
Product Code:
HSD006B
Brand:
Incold

Not yet rated Write a review

Description

HSD006B - INCOLD GLIDE K-AL - K SERIES - RAPID ROLL DOOR

Incold Glide K-AL K Series High Speed Roll Up Door is latest in the Glide Range. Designed to operate Internally, the door can function in temperatures ranging from +40ºc to +1ºc at speeds of upto 2.5m/s. The Door is fitted with Glide Brushes offering a near slinet and low maintenenance solution for Supermarkets, DIY & Hardware Stores and any area where quiet operation is required. The foldable Breakout Shoes minimise potential Safety Edge damage and Call Outs. The K-AL version offers Aluminium Columns, Header and Canopy.

As with all K Series Rapid Roll Up Door the Glide K-AL is fitted with an integral Coaxial 0.25w Single Phase Drive, housed in the Winding Tube. which allow installation into corridoors and any other position where space is limited. The increased opening speed of 2.5 metres per second is ideal for supermarkets and retail distrubution sites where quiet, speedy access to warehousing / stock rooms is a priority. With opening and closing nose levels of >68.9dB it is one of the quietest Rapid Roll Up on the market,and ideal for areas in proximity to the general public.

Maximum recommended Door size 3500mm W x 3500mm H

Certification:

  • Manufactured to EN 13241-1 & CE Certified
  • Sequential Light Barrier complies to EN 12445 Safety Regulations
  • Reduced Operating Noise. >68.9dB

Features:

  • Up to 2.5m/sec opening.
  • Up to 300 Cycles per Day*
  • Integral 0.25kw Single Phase Coaxial Motor 220/240v with Electromagnetic Brake and Absolute Encoder housed in the Winding Tube.
  • Manual Override & Emergency Release Functions
  • K Series 2nd generation Self-Repairing Zipper system with Self-Lubricating Polythene Full Height Guides.
  • Aluminium Alloy Bottom Safety Rail & Floor Seal c/w Foldable Breakout Shoes
  • Sequential Light Barrier & Encoder as standard
  • Built In Emergency Stop Button
  • Intergral IP66 Control Panel with Mylar Keyboard and Digital Display.
  • Aluminium 12/10 Columns pre-painted PPC in RAL 9010 w.
  • Aluminium 12/10 Canopy pre-painted  PPC White RAL 9010 complete with Inspection Chamber
  • Minmimum opening width 1000mm

Curtain Detail:

  • Full Self-Repairing Curtain
  • 930gm/m² Curtain (Available in 1300gm/m² Insulated)
  • Vision .Panels (Full curtain)
  • 16 RAL Colours as Standard (3 RAL Colours Insulated)
  • Self Repairing Breakout Shoes to Aluminium Safety Edge

Options:

  • Induction Loops
  • Pull Cord
  • Remote Control
  • Radar Heads
  • Push Button
  • Traffic Lights & Sounders
  • Inverter for Soft Stop / Soft Start 3phase 380/415v
  • UPS Control Panel for Power Fail
  • Counterweight System for manual operation if Power Fail
