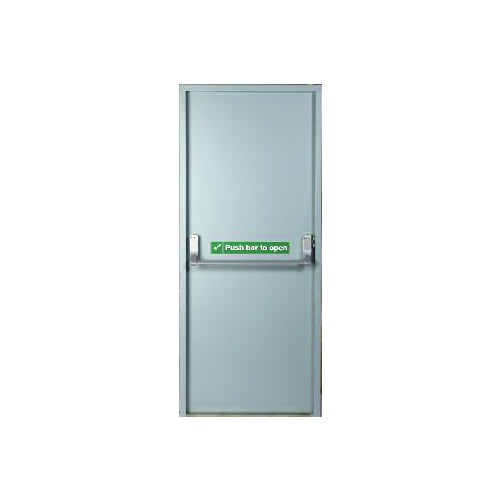

DFS3 - Series 3 Fire Exit Stocked Steel Door (Brand: )

NVM Steel Door Sets DFS3 - Series 3 Fire Exit Stocked Steel Door (Brand: ) DFS3 - Series 3 Fire Exit Stocked Steel Door (Brand: )

DOOR LEAF

  • Thickness of door panel – 1mm thick galvanised steel.
  • Double rebated door leaf 45mm thick.
  • 3 Anti jemmy bolts fitted to door leaf and frame.
  • Door leaf filled with high density non-inflammable rock wool insulation.
  • Reinforcements for fixing panic bolt.
  • Reinforcements for door closer at the top of door leaf.
  • Door leaf supplied with polythene film on both sides for protection during installation.
  • Grey polyester baked paint finish. Also suitable to accept powder coat finish or on site painting.

DOOR FRAME

  • Fully welded double rebated outer frame in 2mm thick galvanised steel.
  • Stainless steel threshold 12mm high.
  • 3 fixing points on each side with adjustable jacking points.
  • Supplied complete with door leaf mounted in frame.
  • Full installation kit and rubber seals supplied as standard.

DOOR HARDWARE

  • Doors supplied pre-drilled and tapped to accept all Briton latch panic hardware.
  • 3 stainless steel dogbolt hinges.
  • Outside locking access device and door closers supplied fitted as optional extras.

OPTIONAL EXTRAS

  • Hardware factory fitted as required.
  • Fire certified doors with up to a 4hr rating.
  • Bespoke steel doors to order.
  • Pre-drilled to accept Briton double panic bolt.


Standard Sizes
Product
DFS
Structural Opening
900
(w)
2100
(h)
1000
(w)
2100
(h)
Frame Size
890
(w)
2090
(h)
990
(w)
2090
(h)
Access Clearance
at 90° excluding hardware
760
(w)
2020
(h)
860
(w)
2020
(h)



Leaf:

  • Overall Thickness: 45mm
  • Material: 1.0 Zintec
  • Core Infill: Fire Retardant Rockwool
  • Door Leaf Construction ( Rockwool )

Manufactured from 1.0 zintec steel, double skinned with interlocking seams reinforced vertically with interlocking channels. Reinforced headplate, footplate and centreplate for furniture fixing.

Spaces are filled with Rockwool core.

Frame:

  • Frame Depth: 90mm x 50mmn Double Rebate
  • Material: 2.0mm Zintec

Description:Manufactured from 2.0mm zintec formed to double rebated profile fully welded form, reinforced and fitted with fixing plates and anti jemmy devices. Jacking Screws fitted as standard.

Threshold: H TYPE Stainless Steel (Fully Welded)

Overall Maximum Frame Size: Single door:

  • 890 x 2090
  • 990 x 2090

Finish: Grey polyester baked paint (can be over coated)

Ironmongery: ​Pre-drilled

  • Pre-drilled to suit Briton 378 Single Panic Latch (Supplied)
  • Briton 376 Double Panic Bolt (Optional Extra)

Hinges:

  • Stainless steel butt hinges
  • Stainless steel dog bolts

Fire Rating: NIL

Certification: TBA

Options:

  • DFS305 Fire Escape Door - L/H 890 x 2090 Single Push Bar
  • DFS306 Fire Escape Door - R/H 890 x 2090 Single Push Bar
  • DFS307 Fire Escape Door - L/H 990 x 2090 Single Push Bar
  • DFS308 Fire Escape Door - R/H 990 x 2090 Single Push Bar
  • DFS321 Fire Escape Door - L/H 890 x 2090 Double Panic Bar
  • DFS322 Fire Escape Door - R/H 890 x 2090 Double Panic Bar
  • DFS323 Fire Escape Door - L/H 990 x 2090 Double Panic Bar
  • DFS324 Fire Escape Door - R/H 990 x 2090 Double Panic Bar
  • DFS331 Fire Escape Door - L/H 890 x 2090 Single Push Bar O/O Device
  • DFS332 Fire Escape Door - R/H 890 x 2090 Single Push Bar O/O Device
  • DFS333 Fire Escape Door - L/H 990 x 2090 Single Push Bar O/O Device
  • DFS334 Fire Escape Door - R/H 990 x 2090 Single Push Bar O/O Device
  • DFS341 Fire Escape Door - L/H 890 x 2090 Double Panic Bar O/O Device
  • DFS342 Fire Escape Door - R/H 890 x 2090 Double Panic Bar O/O Device
  • DFS343 Fire Escape Door - L/H 990 x 2090 Double Panic Bar O/O Device
  • DFS344 Fire Escape Door - R/H 990 x 2090 Double Panic Bar O/O Device
0.00 In Stock
Availability:
In Stock
Product Code:
DFS3
Brand:
NVM Steel Door Sets
