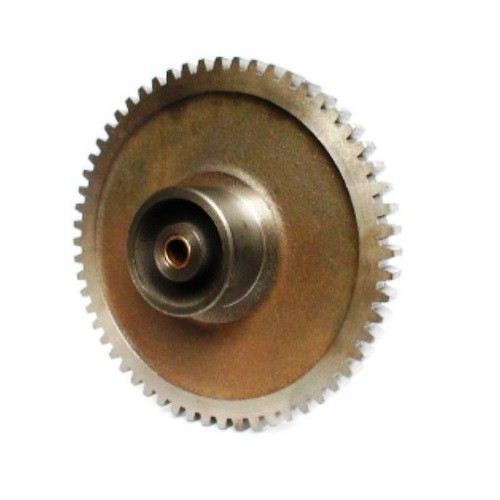

NV040 - Barrel Gear - Cast - 58T x 5DP - Boss for 4 inch tube

NVM Door Components NV040 - Barrel Gear - Cast - 58T x 5DP - Boss for 4 inch tube NV040 - Barrel Gear - Cast - 58T x 5DP - Boss for 4 inch tube

NV040 - Barrel Gear - Cast -  58T x 5DP - Boss for 101.6mm Ø 4" Tube

Technical Details:

  • Grey Cast Iron
  • Machined Faces
  • Machined Bore
  • Machined Gearcut
  • Machined Recess (See Product List)
  • Machined Boss (See Product List)
  • Solid Rim Boss to suit 4" 101.6mm Ø Tube

Product Codes:

97mm Ø Boss for 4" x 16swg Tube;

  • NV040A - BARREL GEAR - 58T x 5DP - 97mm, 1" CLEAR BORE
  • NV040B - BARREL GEAR - 58T x 5DP - 97mm, 1" BUSH
  • NV040C - BARREL GEAR - 58T x 5DP - 97mm, 1" REAM BORE
  • NV040D - BARREL GEAR - 58T x 5DP - 97mm, 3/4" BUSH
  • NV040F - BARREL GEAR - 58T x 5DP - 98mm, RECESS FOR 25mm BEARING
  • NV040H - BARREL GEAR - 58T x 5DP - 97mm, 1.1/4"  BORE

94mm Ø Boss for 4" x 9swg Tube

  • NV040E - BARREL GEAR - 58T x 5DP - 94mm, 1" BUSH
  • NV040G - BARREL GEAR - 58T x 5DP - 94mm, RECESS FOR 25mm BEARING
  • NV040J - BARREL GEAR - 58T x 5DP - 94mm - 25mm Bearing Fitted


Please Note:

  • Some Variants maybe made to order only.
  • For any size not listed please contact the office on 01282 615239 or sales@nvmgroup.co.uk

0.00 In Stock
Availability:
In Stock
Product Code:
NV040
Brand:
NVM Door Components

Not yet rated Write a review

Available Options

* NV040 - 58 Tooth x 5 DP Barrel Gear:

Description

NV040 - Barrel Gear - Cast -  58T x 5DP - Boss for 101.6mm Ø 4" Tube

Technical Details:

  • Grey Cast Iron
  • Machined Faces
  • Machined Bore
  • Machined Gearcut
  • Machined Recess (See Product List)
  • Machined Boss (See Product List)
  • Solid Rim Boss to suit 4" 101.6mm Ø Tube

Product Codes:

97mm Ø Boss for 4" x 16swg Tube;

  • NV040A - BARREL GEAR - 58T x 5DP - 97mm, 1" CLEAR BORE
  • NV040B - BARREL GEAR - 58T x 5DP - 97mm, 1" BUSH
  • NV040C - BARREL GEAR - 58T x 5DP - 97mm, 1" REAM BORE
  • NV040D - BARREL GEAR - 58T x 5DP - 97mm, 3/4" BUSH
  • NV040F - BARREL GEAR - 58T x 5DP - 98mm, RECESS FOR 25mm BEARING
  • NV040H - BARREL GEAR - 58T x 5DP - 97mm, 1.1/4"  BORE

94mm Ø Boss for 4" x 9swg Tube

  • NV040E - BARREL GEAR - 58T x 5DP - 94mm, 1" BUSH
  • NV040G - BARREL GEAR - 58T x 5DP - 94mm, RECESS FOR 25mm BEARING
  • NV040J - BARREL GEAR - 58T x 5DP - 94mm - 25mm Bearing Fitted


Please Note:

  • Some Variants maybe made to order only.
  • For any size not listed please contact the office on 01282 615239 or sales@nvmgroup.co.uk
