SDK100 Series - Automatic Sliding Door Kits for Door Leaf Weights up to 120kgs (Brand: North Valley Metal)

North Valley Metal SDK100 Series - Automatic Sliding Door Kits for Door Leaf Weights up to 120kgs (Brand: North Valley Metal) SDK100 Series - Automatic Sliding Door Kits for Door Leaf Weights up to 120kgs (Brand: North Valley Metal)

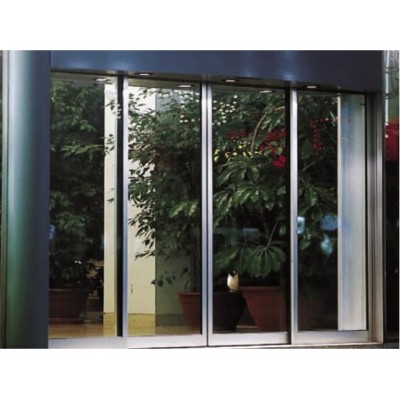

SDK100 Series - Automatic Sliding Door Kits for Door Leaf up to 120kgs

SDK100 Kits are avaialble in Single & double Door Options for Leaf up to 120kgs. Kits can be collated to suit customer individual requirements including Access & Safety Control.

SDK100 Kit accepts Optex & Hotron Sensors including Dual Motion & Presence and Side Safety Presence Sensors. The Main Board Control Panel will also accept Push Pads, Key Pads, Fingerprint Readers, Electric Locks, Proximity Switches and Morning Entry Key Switches, all available from Stock

SDK100 components are also available for replacements and can be purchased individually.

For further information on Bespoke Kits and replacement Spares, contact NVM on 01282 615239 or email sales@nvmgroup.co.uk

Basic Kit Product Codes:

  • SDK003 - SDK100 - AUTOMATIC DOOR KIT - 3.0 MTR, SINGLE DOOR
  • SDK004 - SDK100 - AUTOMATIC DOOR KIT - 4.2 MTR, SINGLE DOOR
  • SDK005 - SDK100 - AUTOMATIC DOOR KIT - 3.0 MTR, DOUBLE DOOR
  • SDK006 - SDK100 - AUTOMATIC DOOR KIT - 4.2 MTR, DOUBLE DOOR
  • SDK007 - SDK100 - AUTOMATIC DOOR KIT - 6.3 MTR, DOUBLE DOOR

Basic Kits Comprises: SDC001 - SDC009 Components depending on Single or Double Door Kit

Components List:

  • SDC001 - SDK100 - COMPONENT - 24v, 55w BRUSHLESS MOTOR

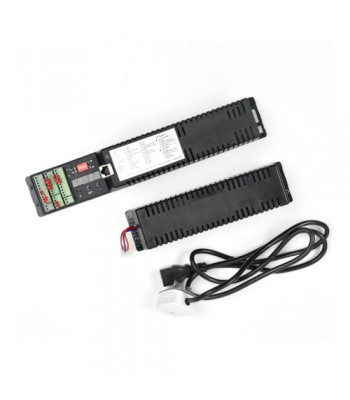

  • SDC002 - SDK100 - COMPONENT - MAIN BOARD CONTROL PANEL
  • SDC003 - SDK100 - COMPONENT - DOOR HANGERS (SET OF 4)
  • SDC004 - SDK100 - COMPONENT - DRIVE BELT (7 METRES)
  • SDC005 - SDK100 - COMPONENT - TENSIONER IDLER

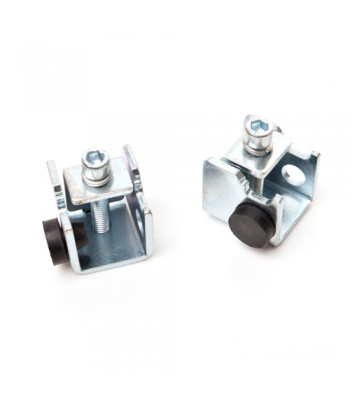

  • SDC006 - SDK100 - COMPONENT - CARRIAGE END STOPS (PER PAIR)

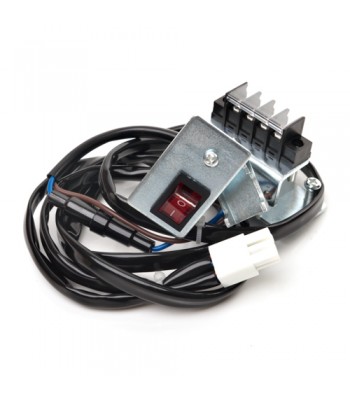

  • SDC007 - SDK100 - COMPONENT - MAIN POWER SWITCH

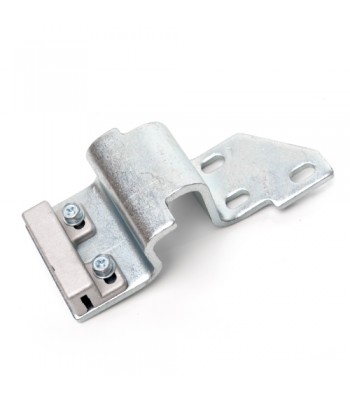

  • SDC008 - SDK100 - COMPONENT - BELT CONNECTOR A UPPER

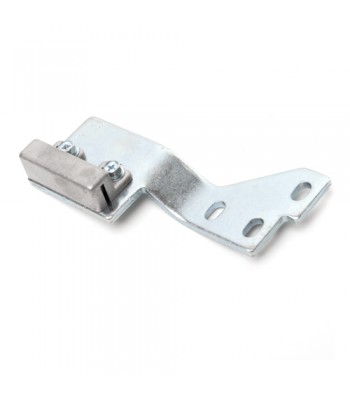

  • SDC009 - SDK100 - COMPONENT - BELT CONNECTOR B LOWER

Technical Details:

  • Power Supply: 220v 50/60Hz
  • Motor: 24v Brushless 55W
  • Opening Speed: Max 500mm/sec adjustable.
  • Closing Speed: Max 500mm/sec adjustable.
  • Opening Pause Time: 0-9 sec adjustable.
  • Max Leaf Weight: 130kgs Leaf (Single Door) / 120 kgs leaf (Double Door)
  • UPS: Open & Close 200 times during power fail
  • Operating Temp: -20c - +70c
  • Hood Options: Hinged or Hingeless
0.00 In Stock
Availability:
In Stock
Product Code:
SDK100 Series
Brand:
North Valley Metal

Not yet rated Write a review

Description

SDK100 Series - Automatic Sliding Door Kits for Door Leaf up to 120kgs

SDK100 Kits are avaialble in Single & double Door Options for Leaf up to 120kgs. Kits can be collated to suit customer individual requirements including Access & Safety Control.

SDK100 Kit accepts Optex & Hotron Sensors including Dual Motion & Presence and Side Safety Presence Sensors. The Main Board Control Panel will also accept Push Pads, Key Pads, Fingerprint Readers, Electric Locks, Proximity Switches and Morning Entry Key Switches, all available from Stock

SDK100 components are also available for replacements and can be purchased individually.

For further information on Bespoke Kits and replacement Spares, contact NVM on 01282 615239 or email sales@nvmgroup.co.uk

Basic Kit Product Codes:

  • SDK003 - SDK100 - AUTOMATIC DOOR KIT - 3.0 MTR, SINGLE DOOR
  • SDK004 - SDK100 - AUTOMATIC DOOR KIT - 4.2 MTR, SINGLE DOOR
  • SDK005 - SDK100 - AUTOMATIC DOOR KIT - 3.0 MTR, DOUBLE DOOR
  • SDK006 - SDK100 - AUTOMATIC DOOR KIT - 4.2 MTR, DOUBLE DOOR
  • SDK007 - SDK100 - AUTOMATIC DOOR KIT - 6.3 MTR, DOUBLE DOOR

Basic Kits Comprises: SDC001 - SDC009 Components depending on Single or Double Door Kit

Components List:

  • SDC001 - SDK100 - COMPONENT - 24v, 55w BRUSHLESS MOTOR
  • SDC002 - SDK100 - COMPONENT - MAIN BOARD CONTROL PANEL
  • SDC003 - SDK100 - COMPONENT - DOOR HANGERS (SET OF 4)
  • SDC004 - SDK100 - COMPONENT - DRIVE BELT (7 METRES)
  • SDC005 - SDK100 - COMPONENT - TENSIONER IDLER
  • SDC006 - SDK100 - COMPONENT - CARRIAGE END STOPS (PER PAIR)
  • SDC007 - SDK100 - COMPONENT - MAIN POWER SWITCH
  • SDC008 - SDK100 - COMPONENT - BELT CONNECTOR A UPPER
  • SDC009 - SDK100 - COMPONENT - BELT CONNECTOR B LOWER

Technical Details:

  • Power Supply: 220v 50/60Hz
  • Motor: 24v Brushless 55W
  • Opening Speed: Max 500mm/sec adjustable.
  • Closing Speed: Max 500mm/sec adjustable.
  • Opening Pause Time: 0-9 sec adjustable.
  • Max Leaf Weight: 130kgs Leaf (Single Door) / 120 kgs leaf (Double Door)
  • UPS: Open & Close 200 times during power fail
  • Operating Temp: -20c - +70c
  • Hood Options: Hinged or Hingeless
