SDK300 Series - Automatic Swing Door Operator for Door Leaf up to 180kgs (Brand: North Valley Metal)

North Valley Metal SDK300 Series - Automatic Swing Door Operator for Door Leaf up to 180kgs (Brand: North Valley Metal) SDK300 Series - Automatic Swing Door Operator for Door Leaf up to 180kgs (Brand: North Valley Metal)

SDK300 Series - Automatic Swing Door Operator for Door Leaf up to 180kgs

SDK300 Series Swing Door Operator is supplied complete with integral Remote Control and 2no Fob Handsets. The Fob Handsets use Rolling Code Technology for maximum security, and can be set as Push or Pull with Articulated Arm. The unit has a Steel Gearbox and will function as Push & Go.

Product Codes:

  • SDK300 - Automatic Swing Door Operator (180kg Leaf)
  • SDK301 - Automatic Swing Door Operator Kit (180kg Leaf) Fob Remote

Features:

  • Built-In Remote Control
  • Push & Go
  • Synchonisation for Double Doors
  • Accepts Door Leaf Safety Sensors, Optex, Hotron, Topscan, others
  • Accepts, Push Pads, Key Pads, Fingerprint Readers
  • Connects to Fire Alarms
  • Accepts Electric Locks
  • Variable Opening / Closing speeds
  • Variable closing time
  • Variable resistance settings

Accessories Product List:

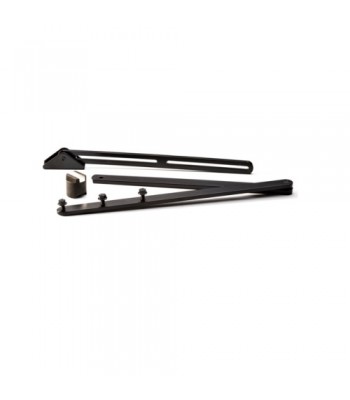

  • SDH010 - SDK300 SERIES - ARTICULATED SWING PUSH ARM & BOSS KIT
  • SDH011 - SDK300 SERIES - SWING PULL ARM & SLIDER
  • SDH100 - SDK300 SERIES - ALUMINIUM PACKER - 45mm x 45mm

Technical Details:

  • Door opening modes:  Single or Double
  • Door Leaf Weights:  Up to 180kgs
  • Door Leaf Widths:  500mm – 1200mm
  • Opening Time:  2.5s – 10s (Adjustable)
  • Closing Time:   2.5s – 10s (Adjustable)
  • Motor:    24v 55w Brushless DC Motor
  • Impact Function:  Rebound on Impact
  • Operating Voltage:  AC200v – AC250v, 50Hz – 60Hz
  • Operating Temperature: -20 – 70 degree C





0.00 In Stock
Availability:
In Stock
Product Code:
SDK300 Series
Brand:
North Valley Metal

Not yet rated Write a review

Description

SDK300 Series - Automatic Swing Door Operator for Door Leaf up to 180kgs

SDK300 Series Swing Door Operator is supplied complete with integral Remote Control and 2no Fob Handsets. The Fob Handsets use Rolling Code Technology for maximum security, and can be set as Push or Pull with Articulated Arm. The unit has a Steel Gearbox and will function as Push & Go.

Product Codes:

  • SDK300 - Automatic Swing Door Operator (180kg Leaf)
  • SDK301 - Automatic Swing Door Operator Kit (180kg Leaf) Fob Remote

Features:

  • Built-In Remote Control
  • Push & Go
  • Synchonisation for Double Doors
  • Accepts Door Leaf Safety Sensors, Optex, Hotron, Topscan, others
  • Accepts, Push Pads, Key Pads, Fingerprint Readers
  • Connects to Fire Alarms
  • Accepts Electric Locks
  • Variable Opening / Closing speeds
  • Variable closing time
  • Variable resistance settings

Accessories Product List:

  • SDH010 - SDK300 SERIES - ARTICULATED SWING PUSH ARM & BOSS KIT
  • SDH011 - SDK300 SERIES - SWING PULL ARM & SLIDER
  • SDH100 - SDK300 SERIES - ALUMINIUM PACKER - 45mm x 45mm

Technical Details:

  • Door opening modes:  Single or Double
  • Door Leaf Weights:  Up to 180kgs
  • Door Leaf Widths:  500mm – 1200mm
  • Opening Time:  2.5s – 10s (Adjustable)
  • Closing Time:   2.5s – 10s (Adjustable)
  • Motor:    24v 55w Brushless DC Motor
  • Impact Function:  Rebound on Impact
  • Operating Voltage:  AC200v – AC250v, 50Hz – 60Hz
  • Operating Temperature: -20 – 70 degree C
