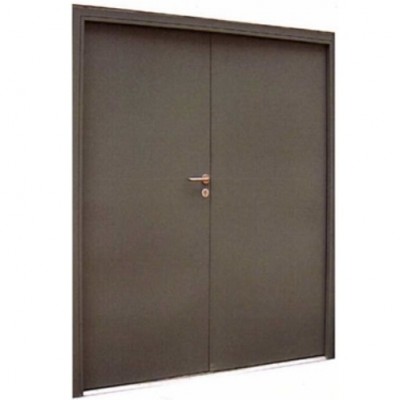

DPS105 - Bespoke Acoustic Steel Door Sets - Made to Measure
- Overall Thickness: 50mm
- Material: 1.6mm Zintec
- Core Infill: Unspecified
- Minimum Frame Depth: 76mm x 25mm Single Rebate
- Minimum Frame Depth: 145mm x 38mm Double Rebate
- Material: 1.6mm
Description: Manufactured from 1.6 zintec formed to single or double rebated profile in welded or knock down form, reinforced and fitted with fixing plates. Depth of frame can vary to suit brick, block, and steel work or to span a cavity.
Threshold: A, B, C, D, E, F, G, H, J Threshold Range
Overall Maximum Frame Size: Single Door: 1240 x 2400 Double Door: 2400 x 2400
Finish: Factory Finish Etch Prime, Powder Coated also Available.
Ironmongery: See Door Range Chart for Compatibility
- Grade 13 Stainless steel ball bearing butt hinges
- Grade 13 Stainless steel ball bearing dog bolt butt hinges
(Complies with EN 1935:2002) Fire Rating: NIL
